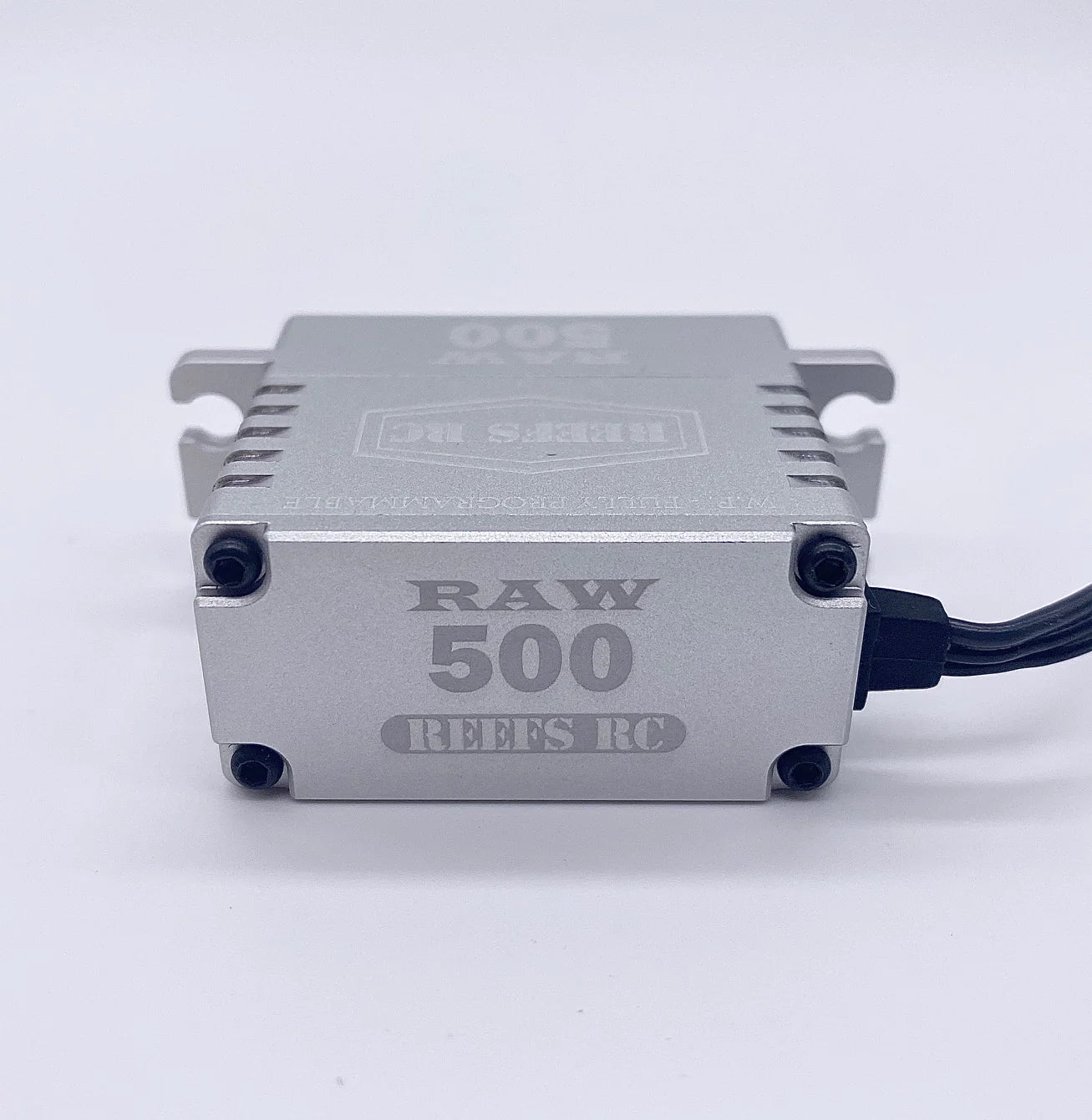

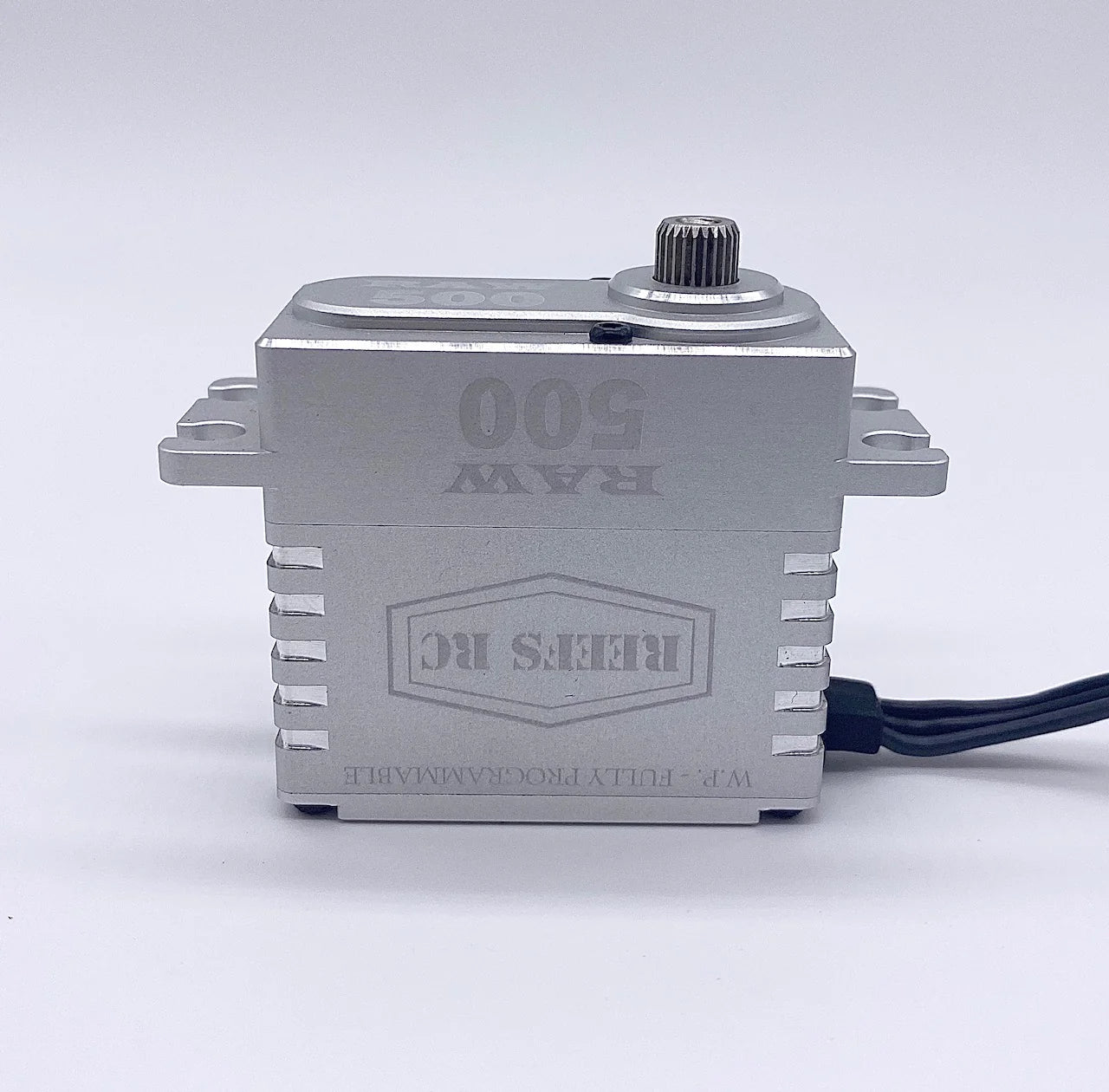

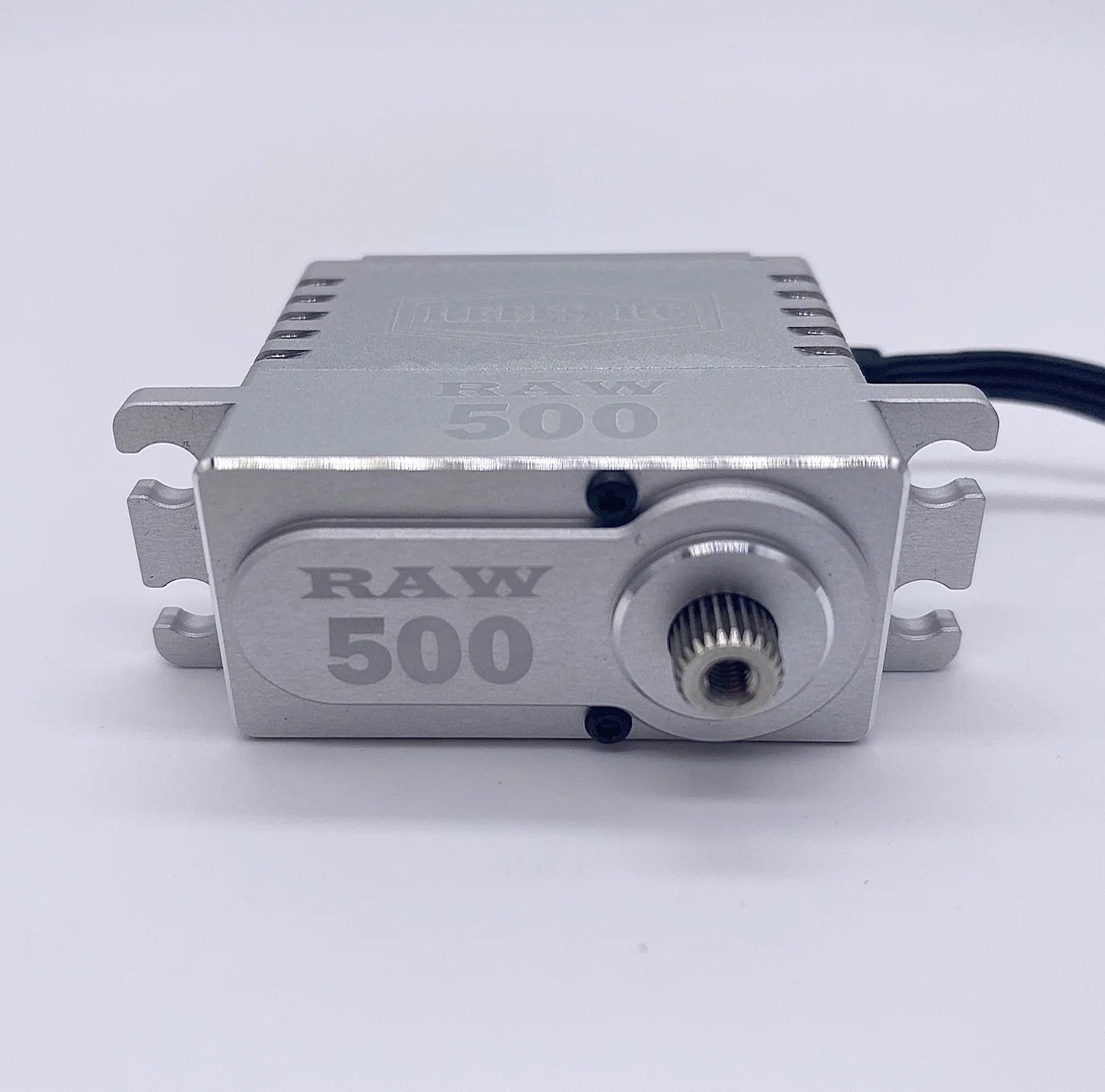

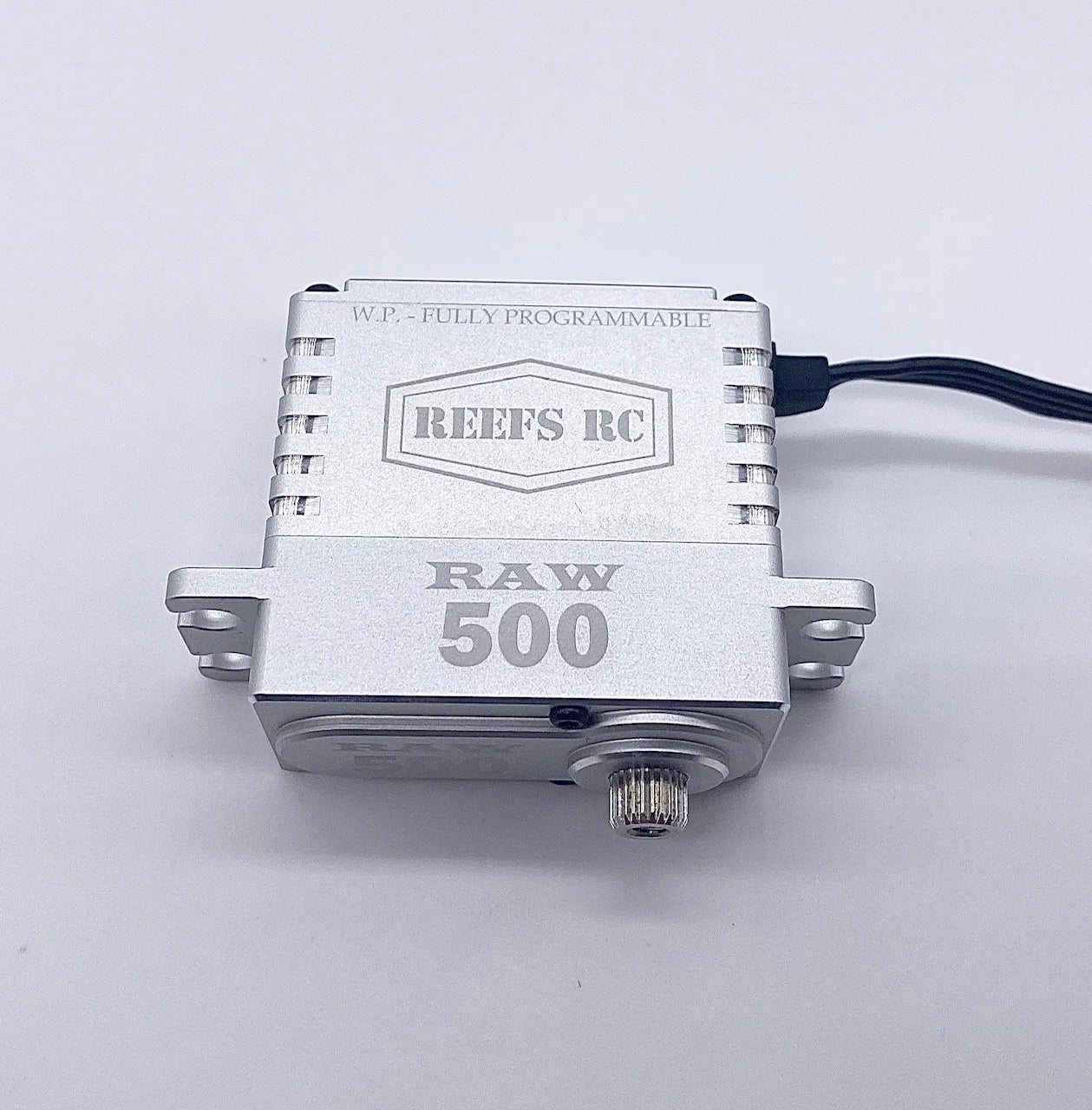

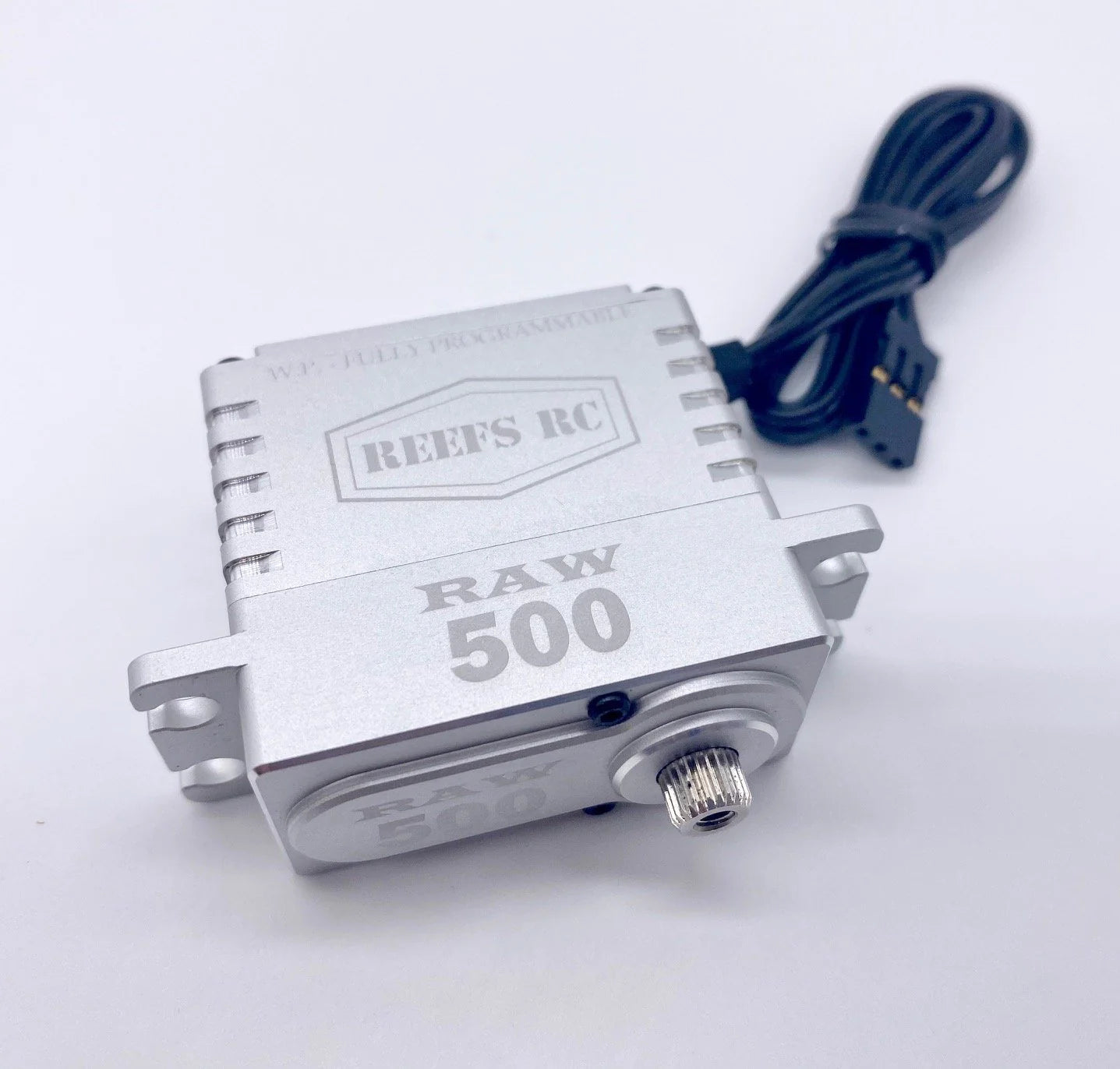

RAW500 HD Brushless Servo

RAW500 HD Brushless Servo

Regular price $139.99 USD
Regular price Sale price $139.99 USD
Sale Sold out

The servo that changed the game. The RAW500 is a powerhouse of a servo that has proven itself time and time again. There's a reason it's our most recommended servo.


  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Fully Programmable w/ REEFS Software (REEFS USB LINK required)
  • Voltage: 4.8V - 8.4V
  • Internal: Steel Gears / All CNC Aluminum REEFS Case
  • Bearing Type: 2 Ball Bearings / Weight: 2.75oz

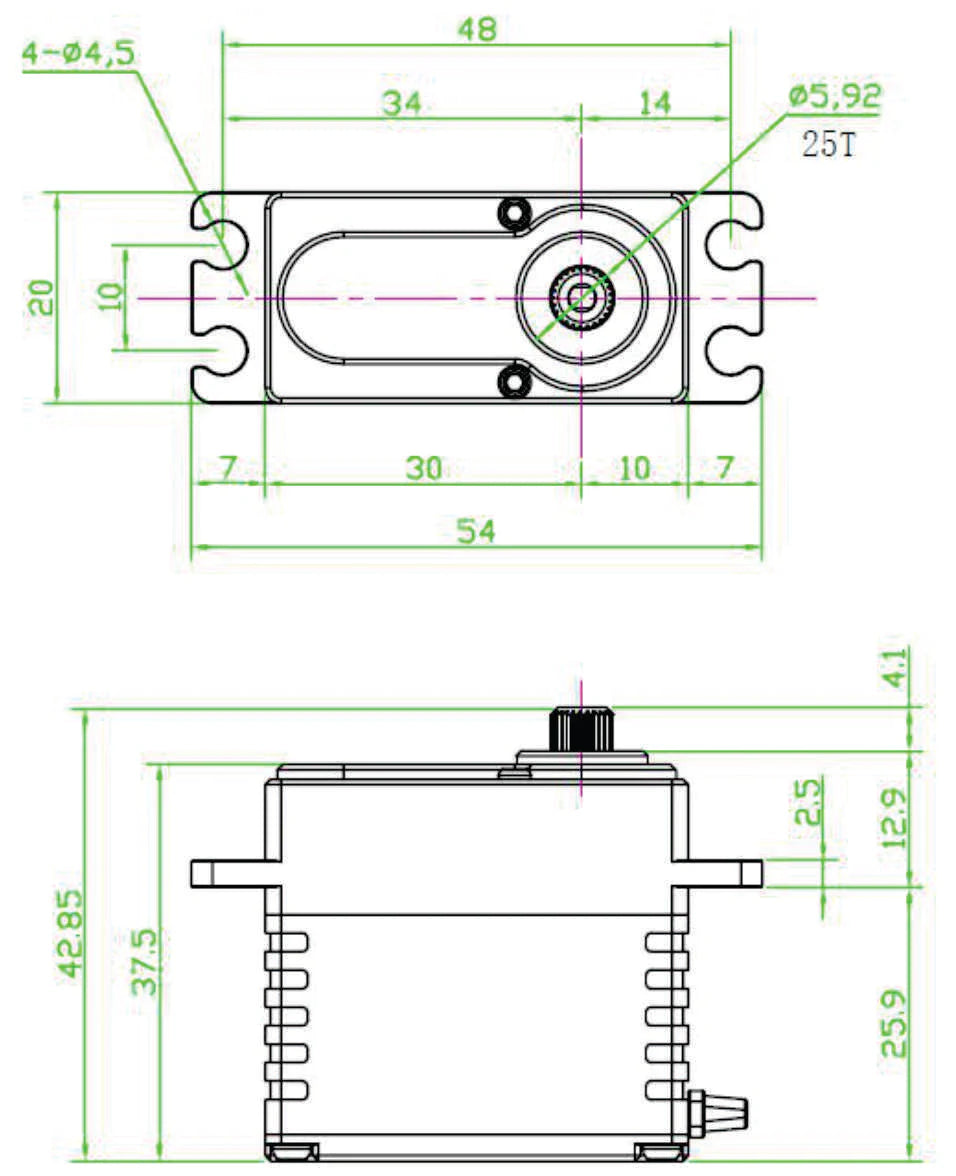

  • Dimensions: 1.57 x .79 x 1.5 (LWH)
  • Torque: 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v
  • Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
  • Spline: 25T
  • Dead Band Width: 2¦Ìs
  • BEC Not Required (Recommended for best performance)

Unload Current: 320mA @ 6.0V / 360mA @ 7.4V / 400mA @ 8.4V

Loading Current: 4000mA @ 6.0V / 4300mA @ 7.4V / 4600mA @ 8.4V

For programming, the USB Link is required.
